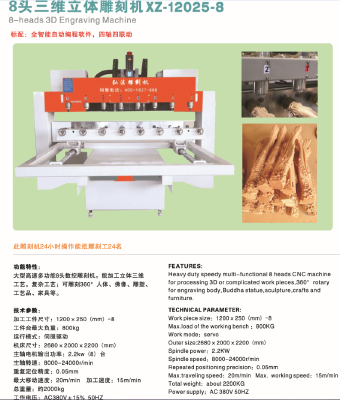

Hongfa NC 4 axis cnc router cnc wood engraving machinery furniture carving machine  cnc copy machine

Hongfa NC 4 axis cnc router cnc wood engraving machinery furniture carving machine cnc copy machine

  • FOB Price:US $17,500 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 150 Sets per Month
  • Port: Ningbo
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2010-06-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  11
  • Place of Origin:  china
  • Brand Name:  Hongfa NC
  • Model Number:  12025-8
  • Weight: 2500.000 kg


Model
XZ12025-8
 Rotary Diameter
  Φ250mm
 Rotary length
 1200mm
 working piece size
1200*250mm
Spindle powerWater cooling 2200W×8
Spindle rotation8000--24000rpm
Motor driverServo motor driver (Chinese servo motor and Japan servo motor is optional)
Tool diameter Φ3.175mm, Φ 6mm, Φ12.7 mm
Machine structureIndustry square tube structure, gantry moving
TransmissionXYZ TBI ball screw, Y double ball screw, double driver.
XYZ railsTBI 3210
Dust-proof systemXYZ high quality dust cover
Mechanical accuracy  <0.03/300mm
Engraveing speed20m/min
Data transmissionUSB or PC-connection directly
Support formatG code or HPGL
Working voltageAC220V/50Hz or 380V/50Hz
Net weight3000kg


  • Size:  11
  • Place of Origin:  china
  • Brand Name:  Hongfa NC
  • Model Number:  12025-8
  • Weight: 2500.000 kg
Model
XZ12025-8
 Rotary Diameter
  Φ250mm
 Rotary length
 1200mm
 working piece size
1200*250mm
Spindle powerWater cooling 2200W×8
Spindle rotation8000--24000rpm
Motor driverServo motor driver (Chinese servo motor and Japan servo motor is optional)
Tool diameter Φ3.175mm, Φ 6mm, Φ12.7 mm
Machine structureIndustry square tube structure, gantry moving
TransmissionXYZ TBI ball screw, Y double ball screw, double driver.
XYZ railsTBI 3210
Dust-proof systemXYZ high quality dust cover
Mechanical accuracy  <0.03/300mm
Engraveing speed20m/min
Data transmissionUSB or PC-connection directly
Support formatG code or HPGL
Working voltageAC220V/50Hz or 380V/50Hz
Net weight3000kg
